Talent aluminum drilling fixture customized for workshop

Talent aluminum drilling fixture customized for workshop

Talent aluminum drilling fixture customized for workshop

MOQ
1 PCS
OEM
GM
Exporting Country
USA
Place of Original
DongGuan, China
Payment Terms
T/T, Cash
Delivery Time
3 Days
Shipping Way
Land transportation,Express,Shipped by air,sea ect
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Application Scope
The checking fixtures for plastic parts produced by Top Talent Automotive Fixtures & Jigs is widely used in the Manufacturing Machinery industry.Top Talent Automotive Fixtures & Jigs always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
Company Advantages
1. Talent body in white components is done by a series of production techniques. It is processed under electrostatic spinning, air vortex spinning, or jet spinning.
2. Perfect quality assurance system and perfect warranty services are established for this product.
3. With our performance objective, the performance of this product is ensured by a series of tests.
4. Thanks to its easy operation and maintenance during its service life, this product can greatly help reduce operation costs.
5. The product will always provide the required consistency. It is programmed for repetitive and precise motion, so making mistakes is not easy.

TTM19240 checking fixture has high measurement accuracy, no fear of deformation, low maintenance cost and good convenience. Key product characteristic inspection, characteristic line inspection, function hole inspection, area detection which is prone to deformation in assembly process, for automobile assembly and production function matching inspection. In the production process of automotive parts, on-line inspection of automotive parts is realized, which ensures the rapid judgment of the quality status of automotive parts in production, ensures the safety and processing speed of automotive assembly, and improves the quality of automotive parts.

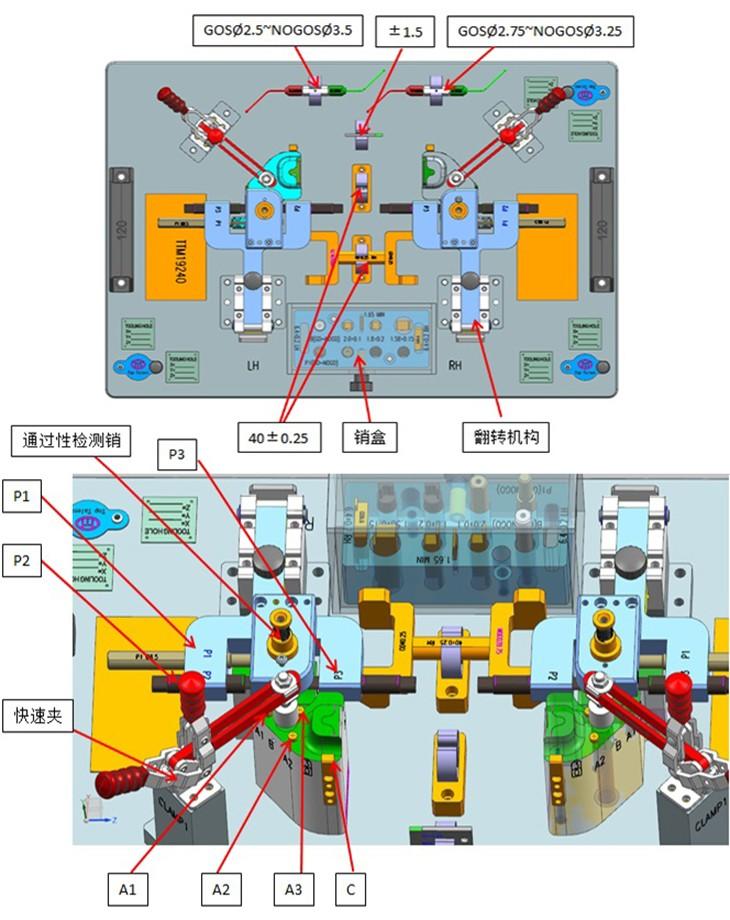

Talent aluminum drilling fixture customized for workshop-1

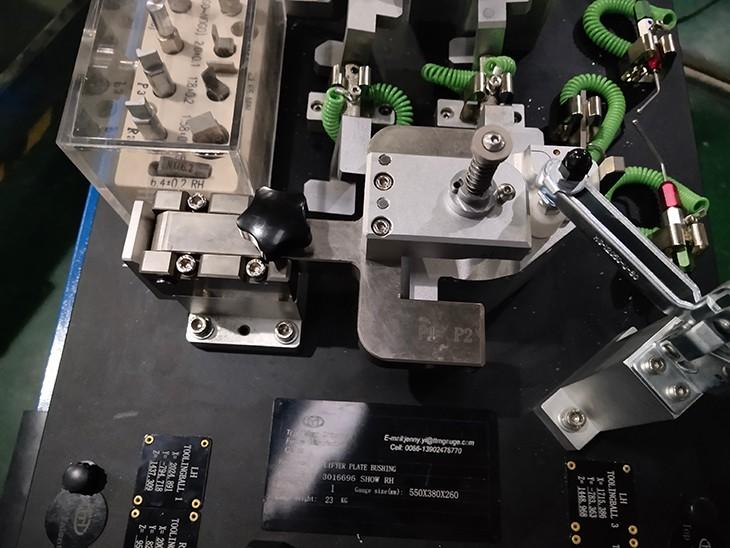

Talent aluminum drilling fixture customized for workshop-2

operation sequence

1.Visual  inspection to check part sharp edges ,cracks and burrs.

2. Use the pass gauge to detect the corresponding size.

3. Open the clamp and flip mechanism to place the product on the body.

4. Adjust the product so that it is in good contact with zero stickers A1, A2, A3, C.

5. Close the quick clip to complete product positioning.

6. Use P1~P3 pin to detect the corresponding hole position or contour.

7. Use the gap gauge to detect the corresponding color point product profile.

8.Use a flush gauge to detect the side of the product.

9.Recording results on the inspection sheet.

10.Open the clamp and flip mechanism, then remove the product.

Product size:89*30*61mm


Company Features
1. As a leading enterprise of manufacturing drilling fixture , Talent has its own capability to offer what customers want.
2. We have a team of talented engineers and craftsmen. They are committed to the quality of our products and are always seeking ways to improve the quality of our products.
3. Within our own facilities, we work on reducing our water consumption, carbon emissions and waste stream, now and in the future. We will uphold our integrity while pursuing business development. As an entrepreneur, we will always meet our commitment no matter in carrying our business activities or fulfilling obligations on contacts. We are aware of the importance of sustainable development. We will practice our environmental protection by using science and technology. For example, we reduce the negative environmental impact by introducing a series of eco-friendly facilities. We are a great example of social and environmental responsibility in approaches to sustainability in a corporate context. Sustainability efforts start in manufacturing lines, such as saving water and electricity consumption and reducing discharges.
