Dongguan checking fixture foreign trade for car industry

Dongguan checking fixture foreign trade for car industry

Dongguan checking fixture foreign trade for car industry

MOQ
1 Set
OEM
Skoda
Exporting Country
Russia
Place of Original
DongGuan, China
Payment Terms
T/T, Cash
Delivery Time
6 Weeks after design approval
Shipping Way
Land transportation,Express,DAP air shipping, Ocean shippment ect
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Dongguan checking fixture foreign trade for car industry
Product Comparison
Top Talent Automotive Fixtures & Jigs pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee checking fixtures for plastic parts to be quality-reliable and price-favorable.Top Talent Automotive Fixtures & Jigs 's checking fixtures for plastic parts has more advantages over similar products in terms of technology and quality.
  • v s
Company Advantages
1. Top Talent steel fixture is designed strictly to tent code requirements, including the minimum roof live load, snow load capability, and wind load capacity.
2. In the production process, advanced testing equipment is used to inspect the products to ensure high performance and consistent quality.
3. By using the advanced testing equipment in the product, many quality problems of the product can be detected immediately, thus effectively improving the quality.
4. To win more clients, Top Talent has developed more comprehensive checking fixture sales network.
5. It is the requirements of customers and checking fixture market promotes the development of Top Talent.

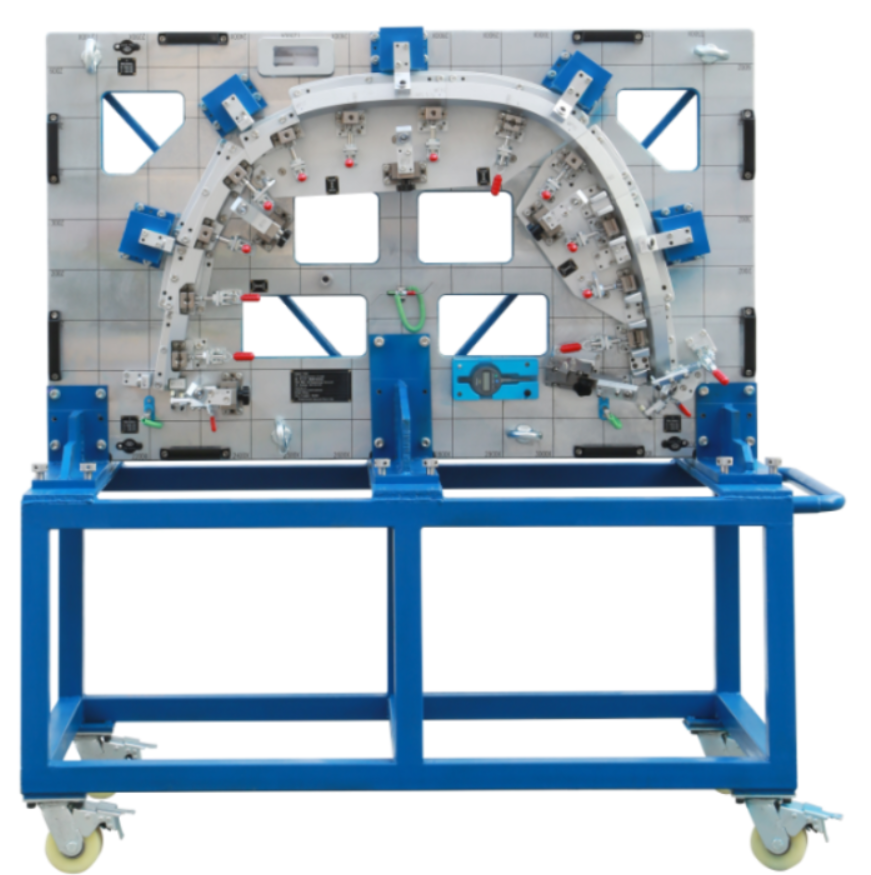

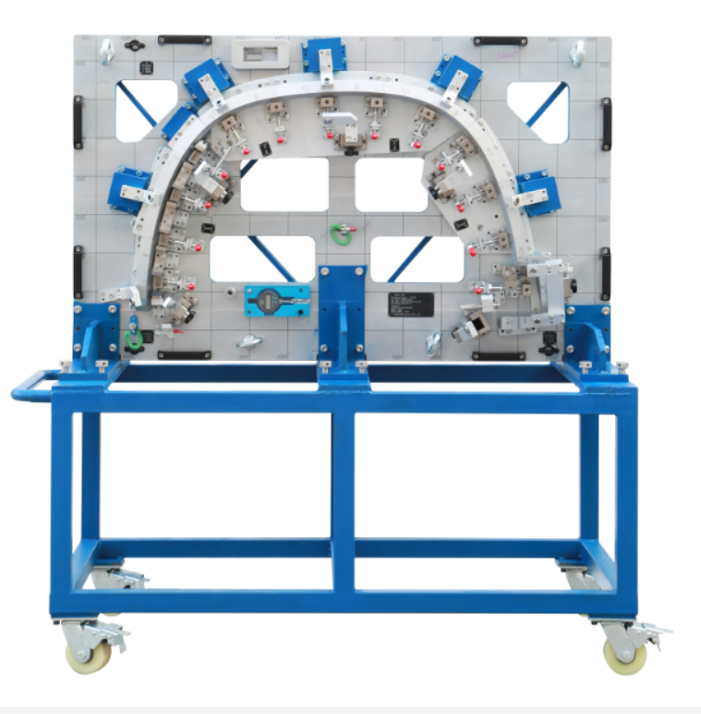

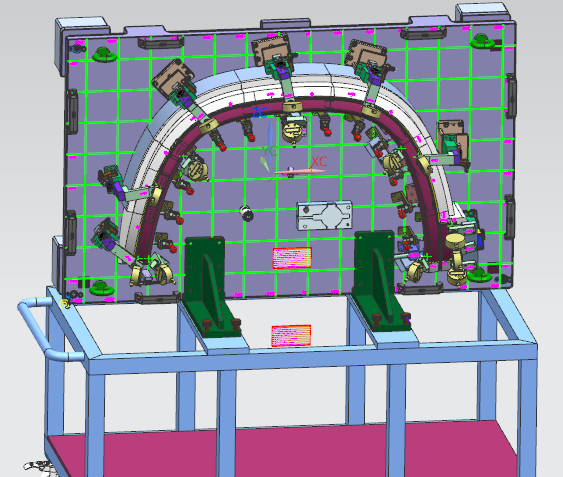

checking fixture for plastic part wheel rim

Project:SK326

Part name for checking fixture:Assy wheel cover, Front RH/LH

Manufacturing of checking fixture base plate with Checking fixture alignment bushing

checking fixture dimensions: length L=1300mm, width W=900mm,Height H=500mm, checking fixture base plate thickness F=20mm

Checking fixture weight greater than 30KG will be required a cart or table with casters

Checking fixture Tooling holes (bushing)

3 or tooling hoels (bushings) must located and identified with the start coordinate on the base of checking fixture.  These features will be used to establish the origin of the checking fixture for certification and layout

checking fixture material and tolerance


Material



Fixture   base Aul
Fixture Body Aul
Tolerance:



datum   +/-0.05
trim line  +/-0.1
Surface   +/-0.1
position of dial   gauge   +/-0.05


Dongguan checking fixture foreign trade for car industry-1

Dongguan checking fixture foreign trade for car industry-2

Dongguan checking fixture foreign trade for car industry-3


Below pictures shows each department of Top talent Automotive Fixture & Jigs Co.,Ltd


Top view of Top talent

Dongguan checking fixture foreign trade for car industry-4


design department, 22 designer, more than 10 people have more than 10 years

experience in checking fixture/jigs of Auto parts

Dongguan checking fixture foreign trade for car industry-5


CNC machining, total 21 sets CNC, 2 shift running

Dongguan checking fixture foreign trade for car industry-6


CMM room, total 5 sets CMM, 2 shift running

Dongguan checking fixture foreign trade for car industry-7


6 meter Of Hexagon CMM

Dongguan checking fixture foreign trade for car industry-8


Assembly area

Dongguan checking fixture foreign trade for car industry-9







Company Features
1. With a large number of steel fixture delivered around the world, Top Talent Automotive Fixtures & Jigs Co.,Ltd. is recognized as one of the leading designers and manufacturers.
2. Our company is formed by a group of specialists whose aim is to provide premium quality and innovative products. They are experienced in creating market-oriented products with little distinctive uniqueness.
3. One of our major goals is to achieve sustainable growth. This goal requires us to use carefully and prudently of any resources, including natural resources, finances, and personnel. We have excellent teams. They are the units of our company to produce goods and provide services. They provide a great deal of knowledge, judgment, and expertise to meet product needs. We continuously seek to improve our operating performance with an emphasis on health, safety, security, and environment, as well as adhering to our ethics and compliance principles. Get an offer!
