fixtures and fittings uses plastic fixtures materials to the guarantee of a 100% natural product. 2.
It is endowed with convenient features. Its operating features have been carefully studied. The controlling panel is located on the basis of convenient handling. 3.
This product meets the requirements of safe use. Safety testing has been performed based on mechanical design/performance, the intent of the product, the conditions of use and more. 4.
This product has really contributed a lot to my business. It has the advantages of easy operation and maintenance, which greatly lowers my operation costs. - One of our customers said. 5.
The product is able to help business owners save time, eliminate data duplication, and thus increases the efficiency of the operation.

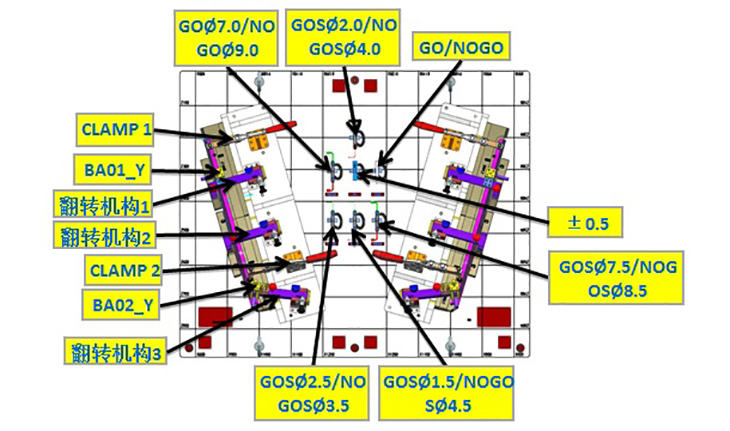

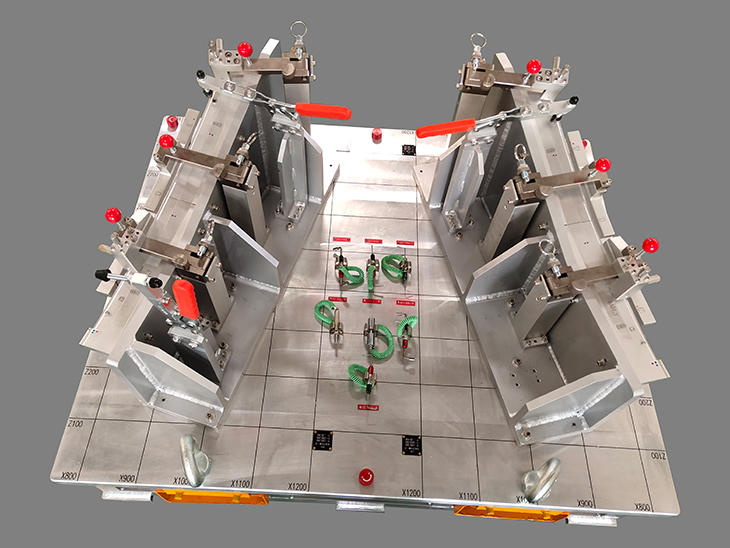

TTM19388 checking fixture has high measurement accuracy, no fear of deformation, low maintenance cost and good convenience. Key product characteristic inspection, characteristic line inspection, function hole inspection, area detection which is prone to deformation in assembly process, for automobile assembly and production function matching inspection. In the production process of automotive parts, on-line inspection of automotive parts is realized, which ensures the rapid judgment of the quality status of automotive parts in production, ensures the safety and processing speed of automotive assembly, and improves the quality of automotive parts.
1.Visual inspection to check part sharp edges ,cracks and burrs.
2.Using GO/NOGO to detect the size of hole of product.
3.Open the clamp and flip mechanism,Put the product on the main body.
4.Adjust the product so that it is in good contact with zero stickers.
5. Close the clamp and flip mechanism in sequence.
6.using the feeler 1(GOSØ2.5/NOGO Ø3.5)to check the profile 1.0mm.
7.using the feeler 2(GO Ø7.5/NOGO Ø8.5)to check the profile 1.0mm.
8.using the feeler 3(GO Ø7.0/NOGO Ø9.0)to check the profile 2.0mm.
9.using the feeler 4(GOSØ1.5/NOGOSØ4.5)to check the profile 3.0mm.
10.Use ±0.5 to detect the edge of the product.
11.Recording results on the inspection sheet.
12.Unclamping and removing part.
Product size：613*52*23mmCompany Features1.
Thanks to years of focus on the design and production of plastic fixtures , Talent Automotive Fixtures & Jigs Co.,Ltd. has been a reliable manufacturer and distributor. 2.
Almost all technician talent for the industry of fixtures and fittings work in our Talent Automotive Fixtures & Jigs Co.,Ltd.. 3.
Our operational philosophy: dedication, gratitude, cooperation. This means that we regard talents, customers, team spirit as important for the development of our company. Get price! The goal of Talent Automotive Fixtures & Jigs Co.,Ltd. is to build a brand name through excellent quality and mature after-sales service. Get price! Our business activities meet the legal statutes of China and are consistent with ethical global business standards. We stoutly refuse to partake any illegal and vicious business activities, such as producing unlicensed products, infringing copyrights, and copying from others. One of our major goals is to achieve sustainable growth. This goal requires us to use carefully and prudently of any resources, including natural resources, finances, and personnel.
